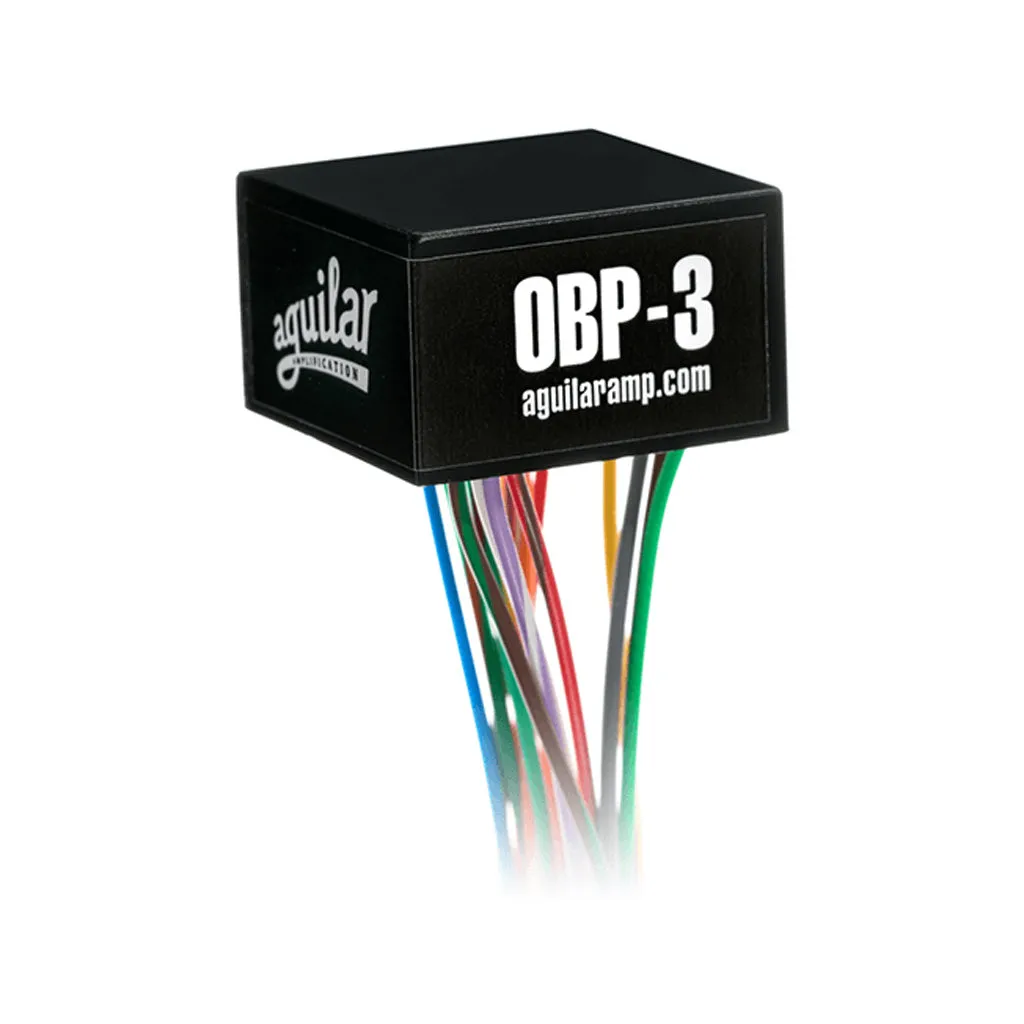

The OBP-3 is Aguilar’s most flexible onboard preamp design, providing /-18dB of cut and boost at 40Hz, /- 16dB of cut and boost at either 400Hz or 800Hz and /- 16dB of treble cut and boost at 6.5 kHz. The OBP-3 has multiple wiring options and can be wired with either a push/pull pot OR mini-toggle for midrange frequency selection.
Features:
- Low noise discrete FET input stage
- Centre detent 50 K linear pots
- Dual concentric pot available
- 324 hours of battery life
Specifications:
- Bass control: 18 dB @ 40 Hz
- Mid control: 16 dB @ 400Hz or 800 Hz. User-selectable frequency centre
- Treble control: 16 dB @ 6.5 kHz
- Input impedance: 1 megohm
- Output impedance: 100 ohms 9 or 18 volts operation
- Distortion: .019 into 10k ohm load
- Noise: -95 dBm unweighted
- Wire lead length: 6.50 inches
- Includes: Stacked Treble/Bass pot, Mid pot, and black mini-toggle switch for Midrange
- Dimensions: 0.98” (W) x 0.98” (L) x 0.59” (D)
